ALL LIGHTS ON^® INSTALLATION INSTRUCTIONS

APPLICATION: 2007 - 2017 Toyota Tundra and 2008 - 2018 Toyota Sequoia with factory installed fog lamps.

ESTIMATED INSTALLATION TIME: 5 minutes

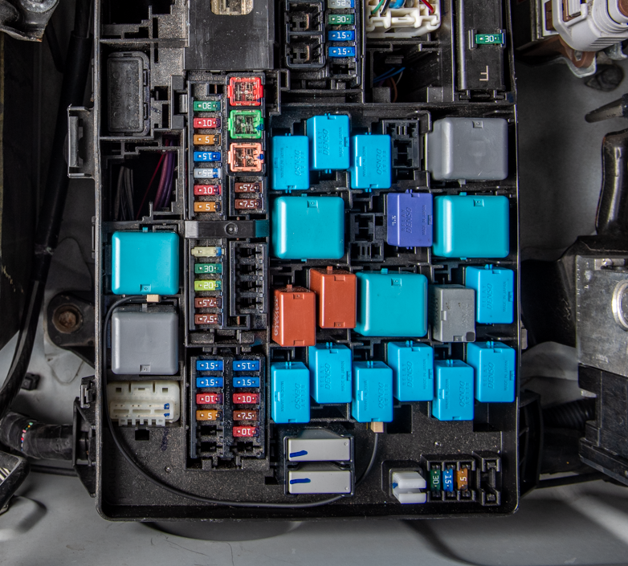

STEP 1: OPEN the vehicle hood and locate the relay / fuse block on the right side of the engine, behind the battery.  REMOVE the cover panel.

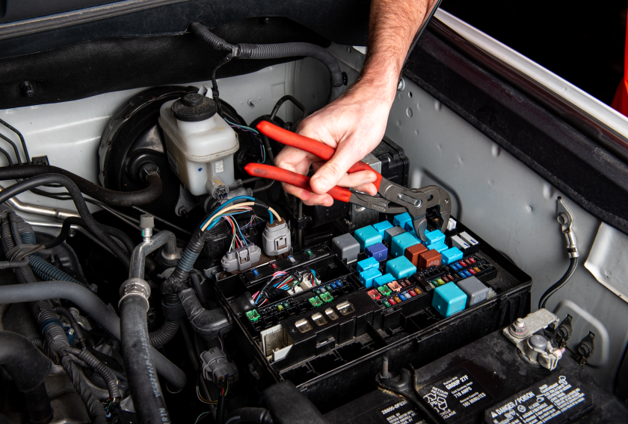

STEP 2: Carefully REMOVE the relays labeled: FOG and DIM. It may be necessary to use a pair of pliers to remove the relays.

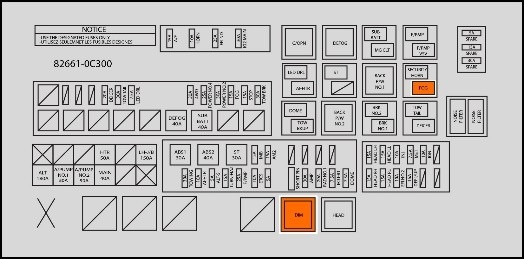

These relays are highlighted in orange in the graphic below.

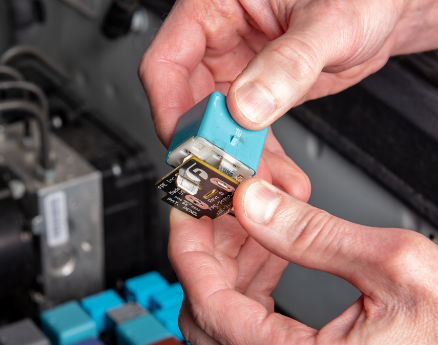

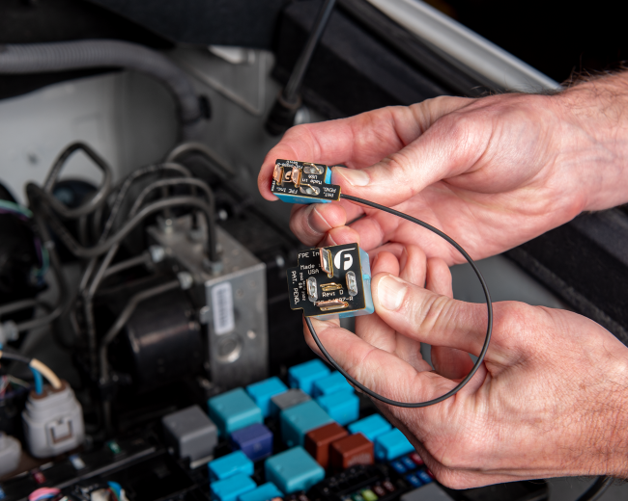

STEP 3: Insert the two relays that were removed through the All Lights On boards with the wire connection facing towards the top of the relay.  The board will make a firm connection with the relay.

NOTE: See orientation of boards onto relays below. DO NOT install upside down.

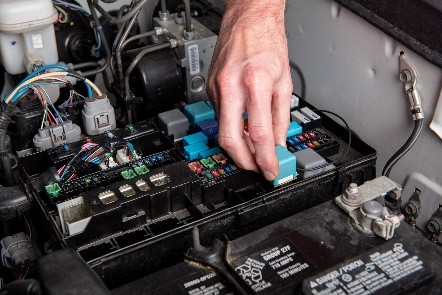

STEP 4: Reinstall the two relays back into their original location. Route the connecting wire along the side of the relay box.  Install the relay panel cover.

OPERATION:

MY2007-2013 (Separate high and low bulbs): High beams, driving lights, and fog lights all on when high beams are enabled.
MY2014-2017 (Dual filament bulbs): High beams and fog lights on when high beams are enabled.

The fog lights will not be enabled when the auto-high beam feature is activated.  For full functionality, auto-high beams should be deactivated.
